DDZ Lined elevator

DDZ lined series elevator is a split elevator, used to suspend tapered drill pipe, casing, etc. Loads from 100 tons to 500 tons. The buckled pipe diameter is from 23/8 to 7; the elevator design adopts an integrated multi-lining design, and the lining is replaced to meet the needs of different pipe strings and reduce the user's use cost. The products are designed and manufactured according to API Spec 8C Drilling and Production Lifting Equipment.

Details →

DSE double tubing elevator/chuck

DSE 250T double tubing elevator/chuck is mainly used for clamping tubing in oil and gas drilling and workover operations. It is designed and produced to meet the special operation of double tubing. The products shall be designed and manufactured according to the requirements of API Spec 8C and API Spec 7K. The elevator/chuck is the use of pneumatic operating system, effectively reducing the labor intensity of workers, improve work efficiency.

Details →

Sucker rod elevator

The sucker rod elevator is mainly used for holding and lifting the sucker rod. The product shall be designed and manufactured according to the requirements of API Spec 8C.

Details →

Sucker rod hook

The sucker rod hook is one of the sucker rod lifting equipment. It is composed of a hook body, a bail and a safety locking device. When working, there is no need to manually open the locking arm, and the lifting ring of the sucker rod elevator can be locked into the hook. When the lifting ring is in place, the locking arm is reset under the action of the spring, so as to ensure the safety of the lifting of the sucker rod hook. The product is designed and manufactured according to the requirements of API Spec 8C.

Details →

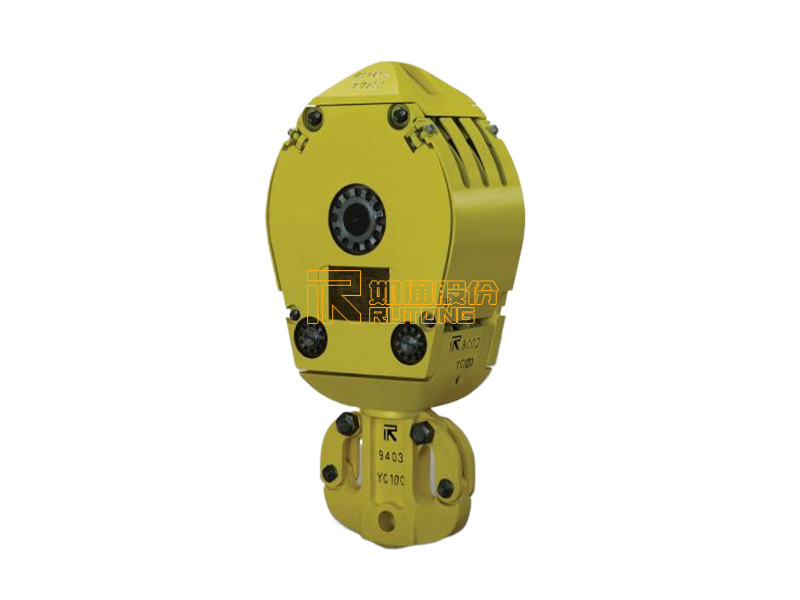

Traveling Bend Hook

The traveling block hook is one of the lifting equipment of the oil drilling rig. In the process of drilling operation, it is mainly used to suspend and trip the drilling rod string, replace the drill bit and run the casing. In case of slight sticking and resistance, it can also be used to eliminate accidents. The product is designed and manufactured according to the requirements of API Spec 8C.

Details →

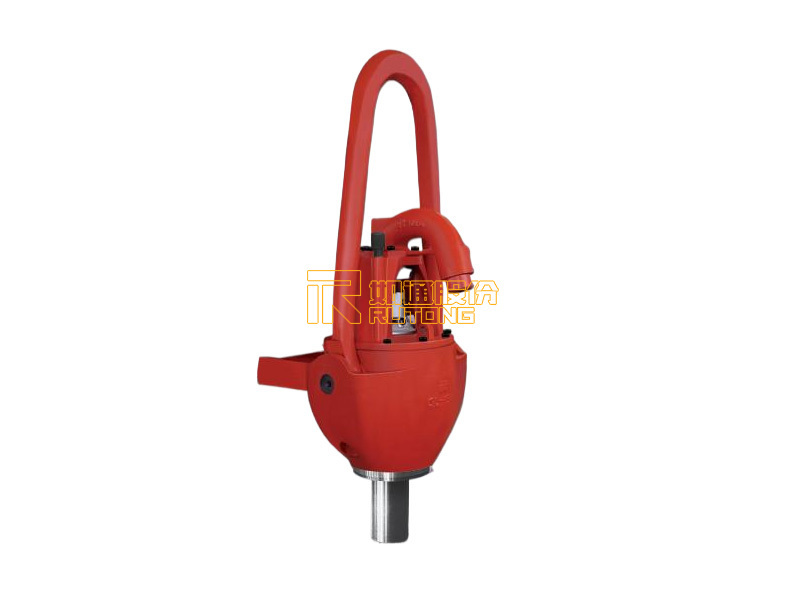

Faucet

SL faucet is a lifting tool for hanging drill string and connecting hose during oil and natural gas drilling and workover operations. It has several specifications such as SL35, SL60, SL90 and SL150. The product shall be designed and manufactured according to the requirements of API Spec 8A/8C.

Details →

WDY type slip type hydraulic elevator

WDY type slip type hydraulic elevator is a tool used to lift the pipe string in oil and gas drilling. By replacing the slip body, the tapered drill pipe, drill collar, casing, tubing and other pipe strings can be suspended conveniently and reliably, which effectively prolongs the service life of the elevator body. The product adopts electrical and hydraulic control system, which is convenient to operate. At the same time, the applicable turning device can be selected according to the needs to realize the turning of the elevator and realize the perfect combination with the pipe string conveying device such as the power catway. The elevator shall be designed and manufactured according to API Spec 8C Specification for Drilling and Production Hoisting Equipment.

Details →

CDZY hydraulic elevator

CDZY hydraulic elevator is an automatic lifting tool used in oil and gas workover operations. During the workover operation, the hydraulic elevator can be turned over within the range of 0~90 ° through two turning arms, and can be adjusted through operation within its angle range, so that the center hole of the hydraulic elevator and the V-shaped surface of the hydraulic catwalk are stopped after keeping the same angle, so that the hydraulic elevator can smoothly buckle the pipe string on the hydraulic catwalk; In the overhaul operation, it can effectively cooperate with the manipulator of the RING platform to buckle the corresponding specification pipe string. The standard elevator control cabinet is equipped with elevator closing and pipe string entry indicator lights to prompt the driller's elevator status.

Details →

DDZH Hydraulic Elevator

The DDZH hydraulic elevator is a split-type elevator that can hang tapered drill pipes, drill collars, casings, and oil pipes by replacing the lining; using a hydraulic control system, the operation is more convenient, which can effectively reduce the labor intensity of workers and improve work efficiency. Efficient, remote control possible, safe and reliable to use. The elevator is designed and manufactured in accordance with API Spec 8C "Drilling and Oil Production Lifting Equipment".

Details →

Air Elevator

Install a pneumatic operating device on the existing elevator to realize automatic operation of the elevator. This pneumatic operating device can easily open or close the elevator to meet the needs of drilling and workover operations, and solve the labor-intensive problem of oilfield workers during drilling operations. The products are designed and manufactured in accordance with the requirements of API Spec 8C "Drilling and Oil Production Lifting Equipment".

Details →

CDZ anti-drop elevator

The anti-drop elevator is an improved design based on the original CDZ elevator. The safety pin is changed into a ring stop that can be automatically reset, which avoids the work of workers bending down to pull out and insert the safety pin during operation. It is safe, reliable, flexible in operation and convenient to use. The product is designed and manufactured according to API Spec 8C "Specification for Drilling and Oil Production Hoisting Equipment.

Details →

CDZ elevator

CDZ taper drill pipe elevator is mainly used for clamping and lifting taper drill pipes and tools during oil and gas drilling and workover operations. The product shall be designed and manufactured according to the requirements of API Spec 8C. Usually according to API standard aperture supply, can also be customized according to customer specifications special aperture.

Details →
